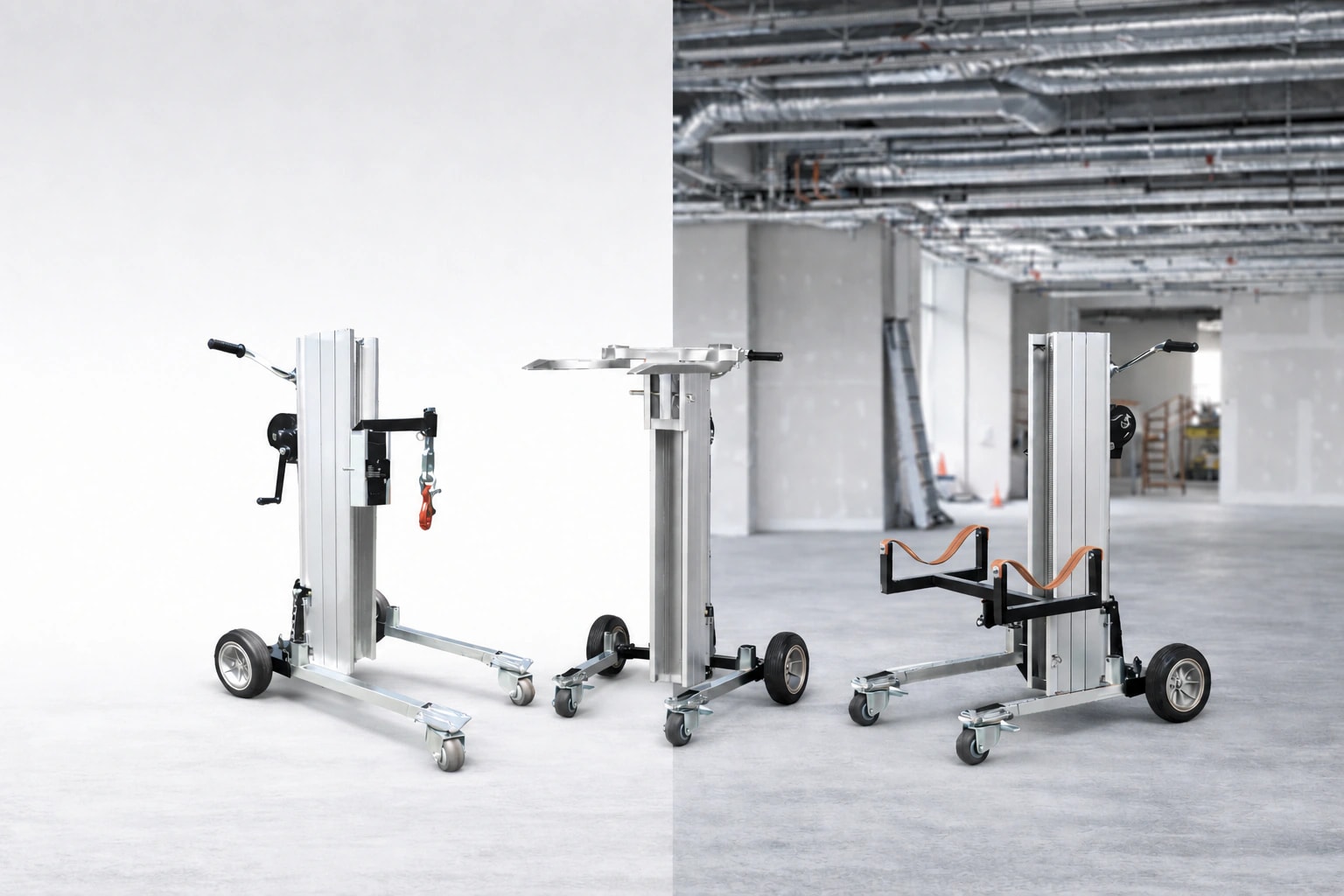

01Multi-purpose lifting capability
The BD1 is built around a modular concept and can be used with different accessories to adapt the machine to different lifting tasks.
All systems
Manual / BD Series
BD1
A compact manual lift for controlled lifting up to 180 kg, with interchangeable attachments, an adjustable wheelbase and practical transport for professional work.
Compact manual lift
Maximum lifting height3.03 m
Maximum capacity180 kg
Machine weight60 kg
OperationManual
01 Built for controlled work
Why choose
BD1.
Compact handling with maximum versatility. The design stays focused on practical setup, accurate positioning and professional installation work.
01

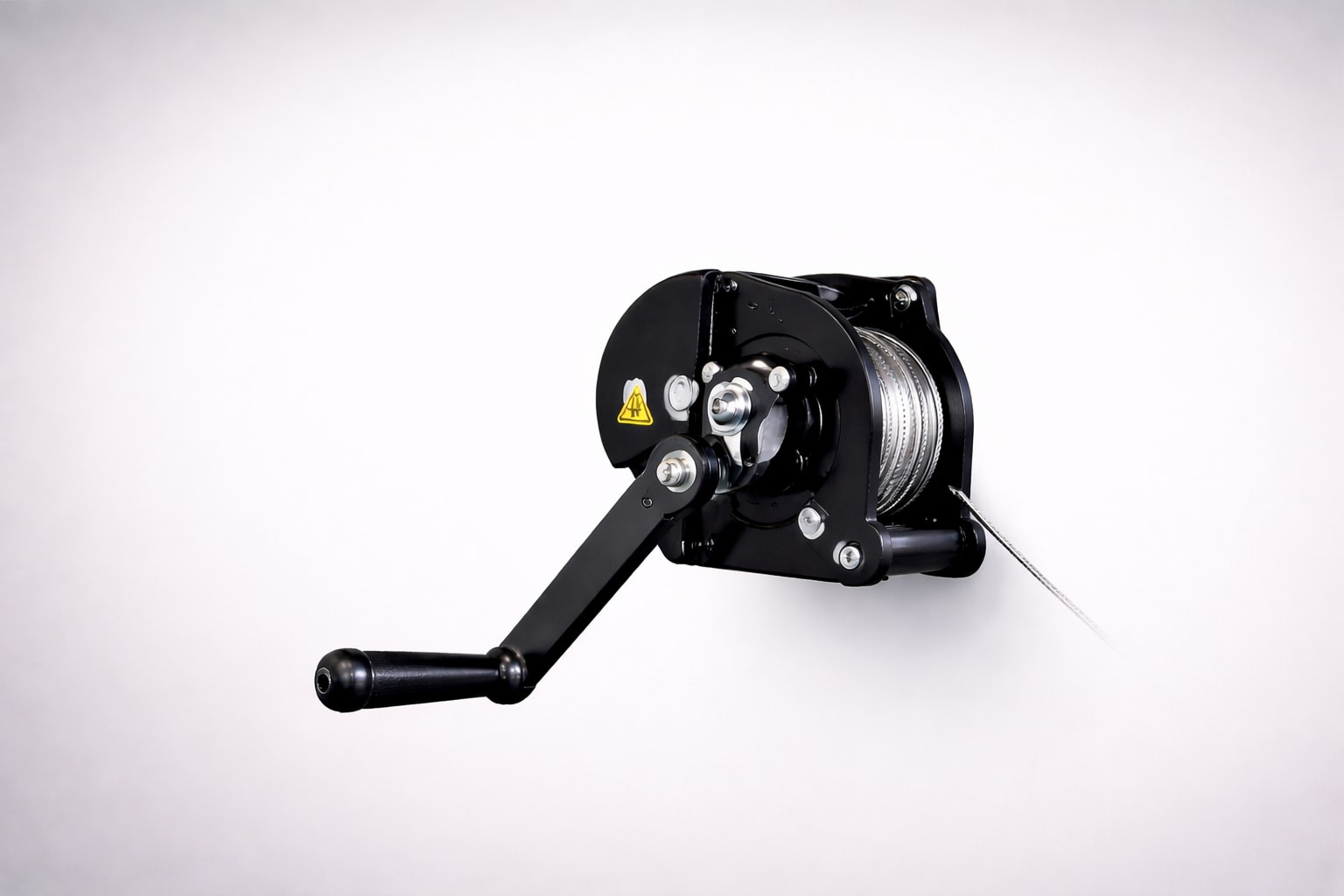

02Manual winch operation with automatic brake
Manual winch operation with an automatic brake supports safe, controlled lifting and lowering.
03Up to 180 kg lifting capacity
The BD1 is a manual material lift with a load capacity of up to 180 kg, depending on the lifting height.

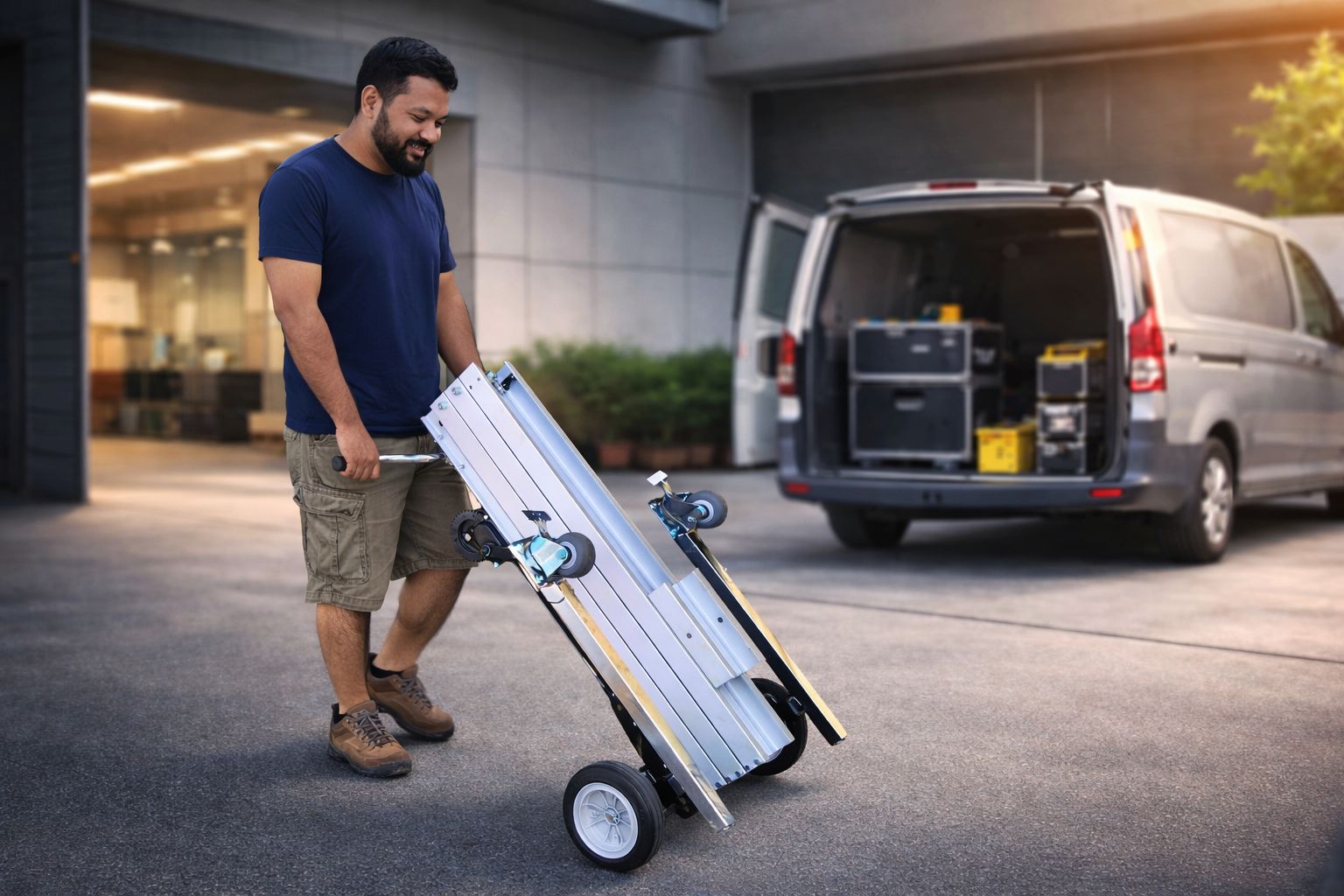

04Compact transport-friendly design
Its removable construction, detachable feet and transport-focused layout make loading into vehicles and movement between jobs easier.

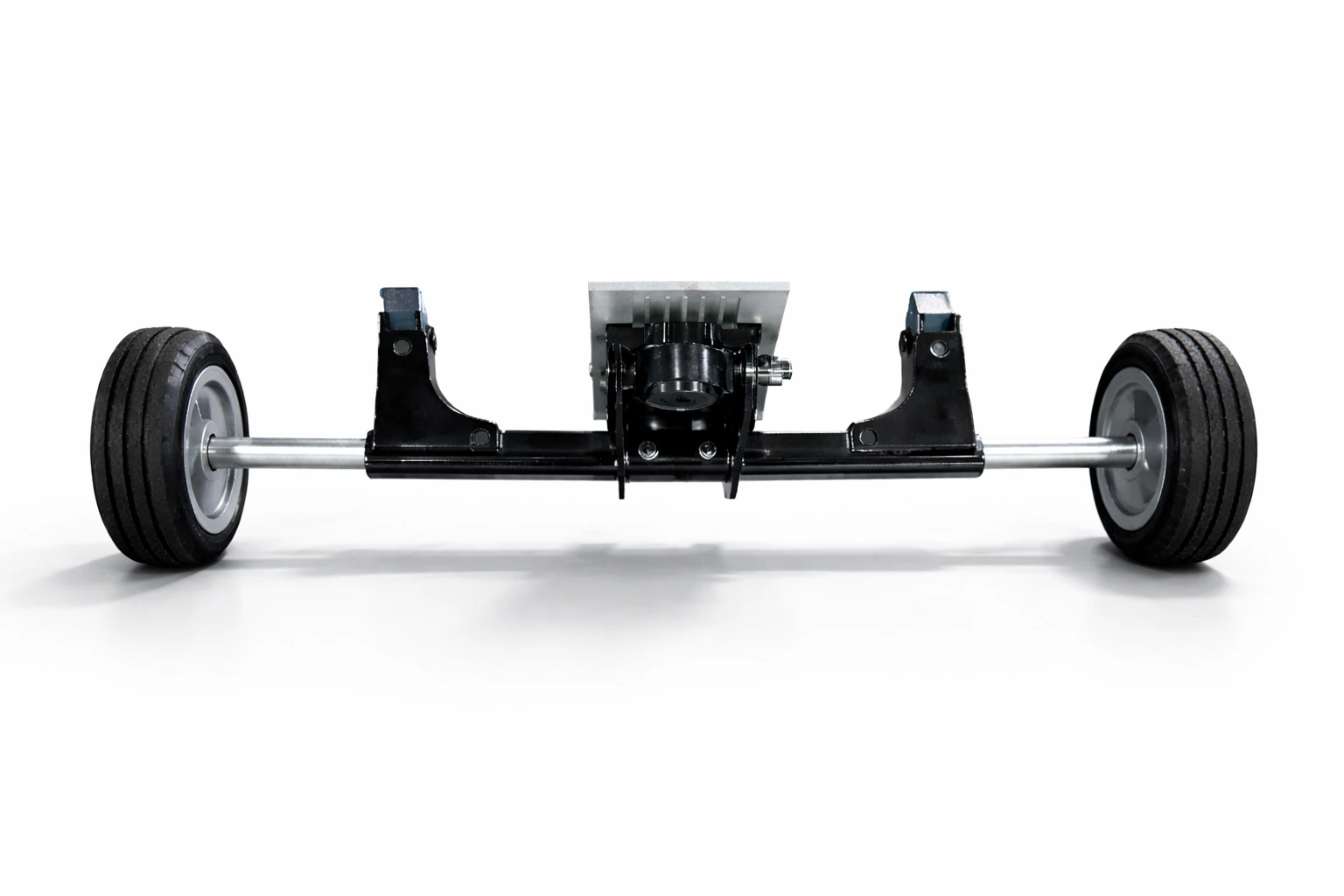

05Adjustable wheelbase for bulky loads
The adjustable wheelbase improves stability and handling for larger or more cumbersome loads.

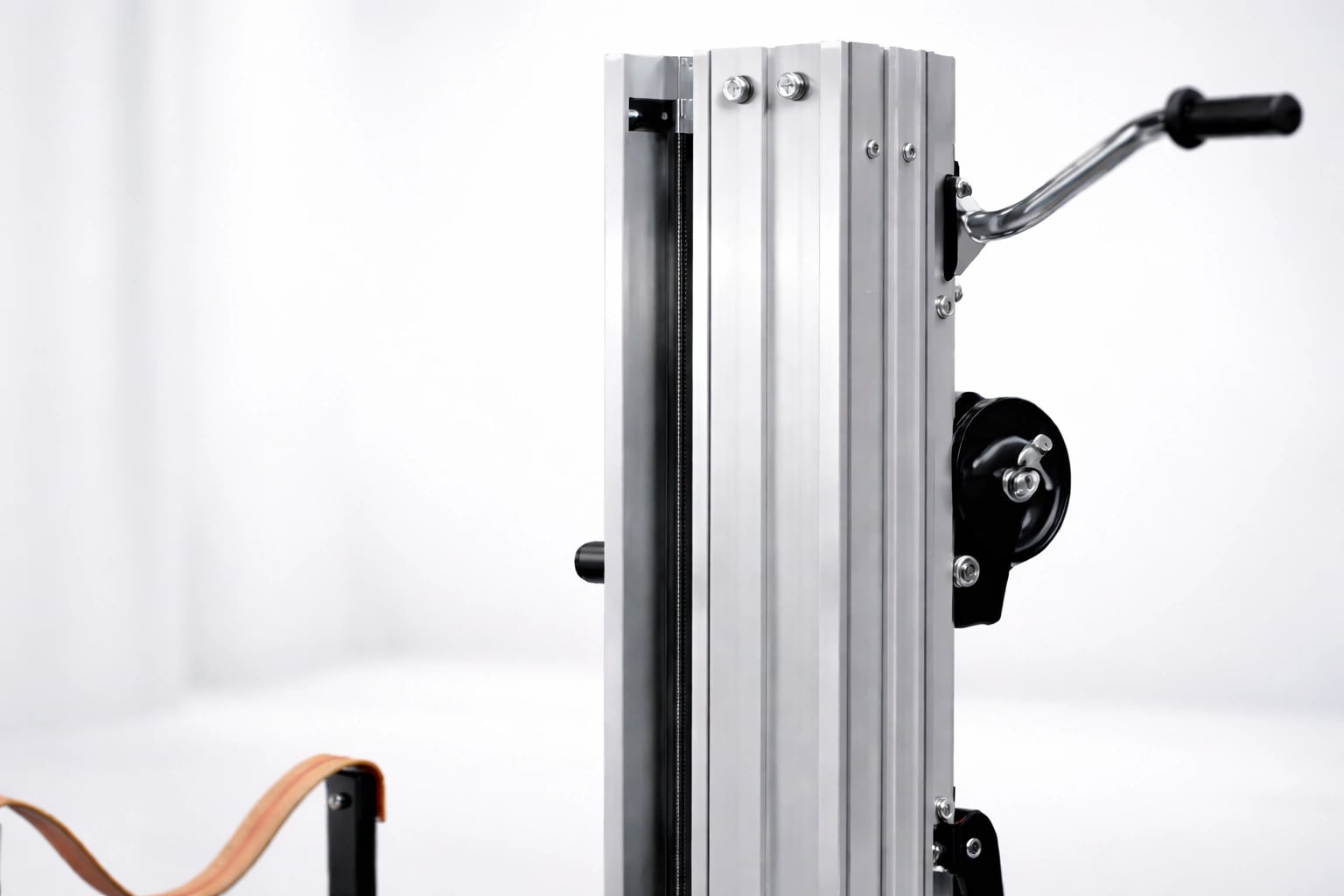

06Strong aluminium lifting rails
The BD1 uses aluminium lifting rails designed to combine compactness with strength.

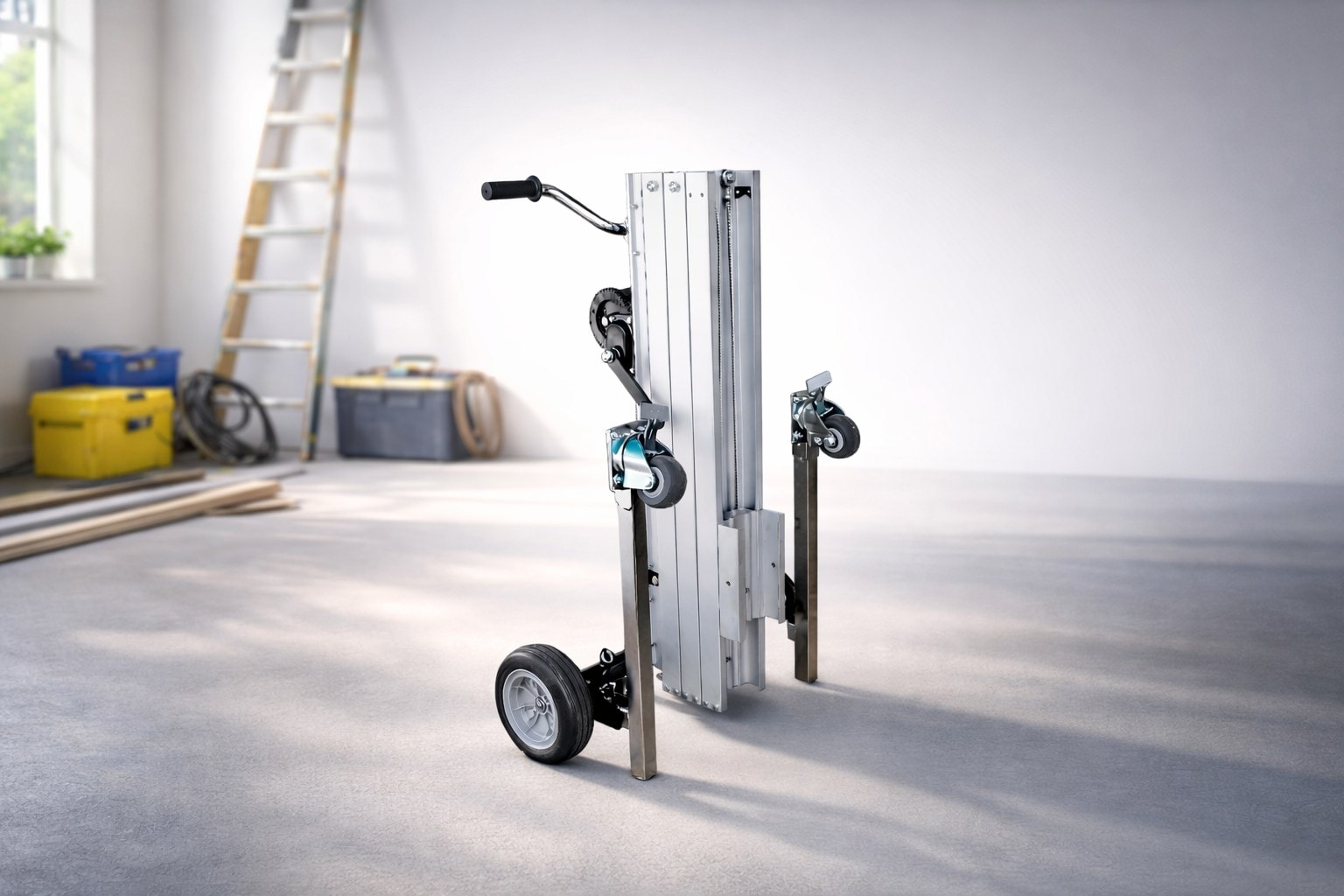

07Ready for work immediately
The BD1 is ready for immediate use as soon as it is unloaded from the vehicle.

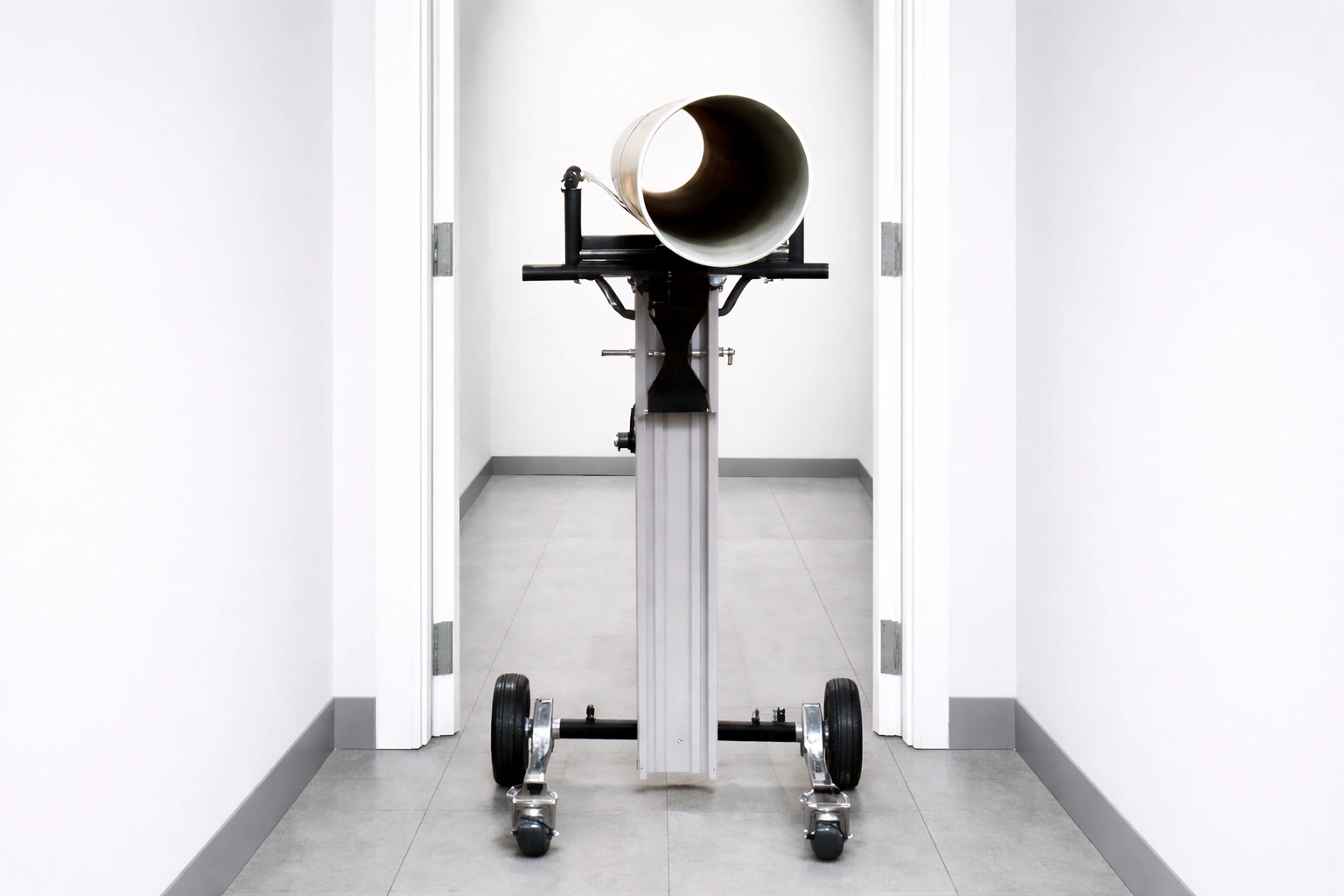

08Door access
The lift can be tilted to 90° for slim, easy access through openings as narrow as 77 cm (30 in).
09Designed to reduce physical strain
The BD1 offers a safer alternative to repeated manual handling, helping reduce lifting effort and the risk of muscle strain.
02 Product gallery
See BD1 in real use.
Product views first, then product details and application views. Shared range components are labelled as such.
13 product and application views

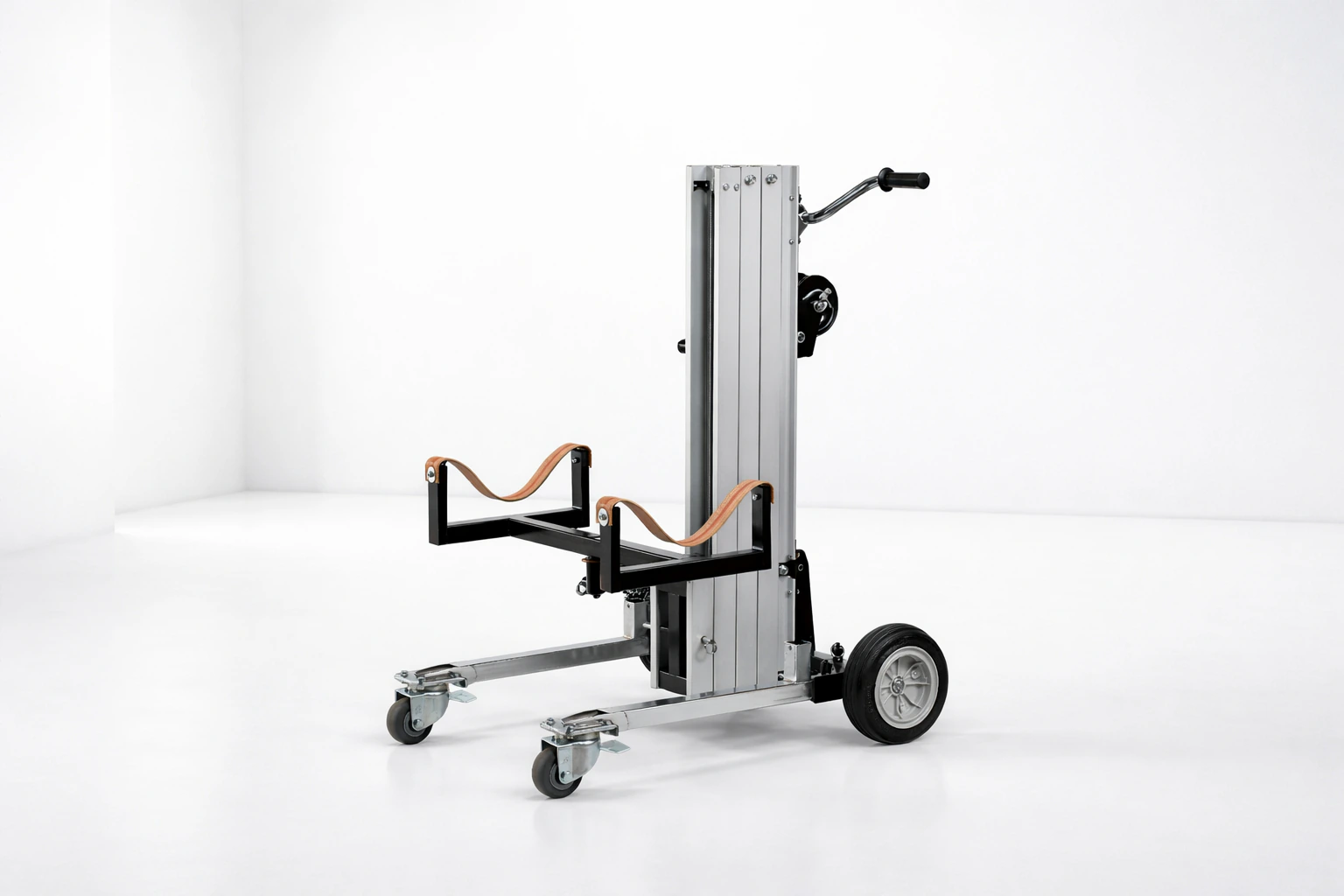

Product viewBD1 studio view
BD1 in its complete working configuration.
Choose a view
03 Applications and industries
Built for real installation work.
The BD1 is a versatile manual lifting device for multiple installation environments rather than a single trade, with attachments selected around the load.

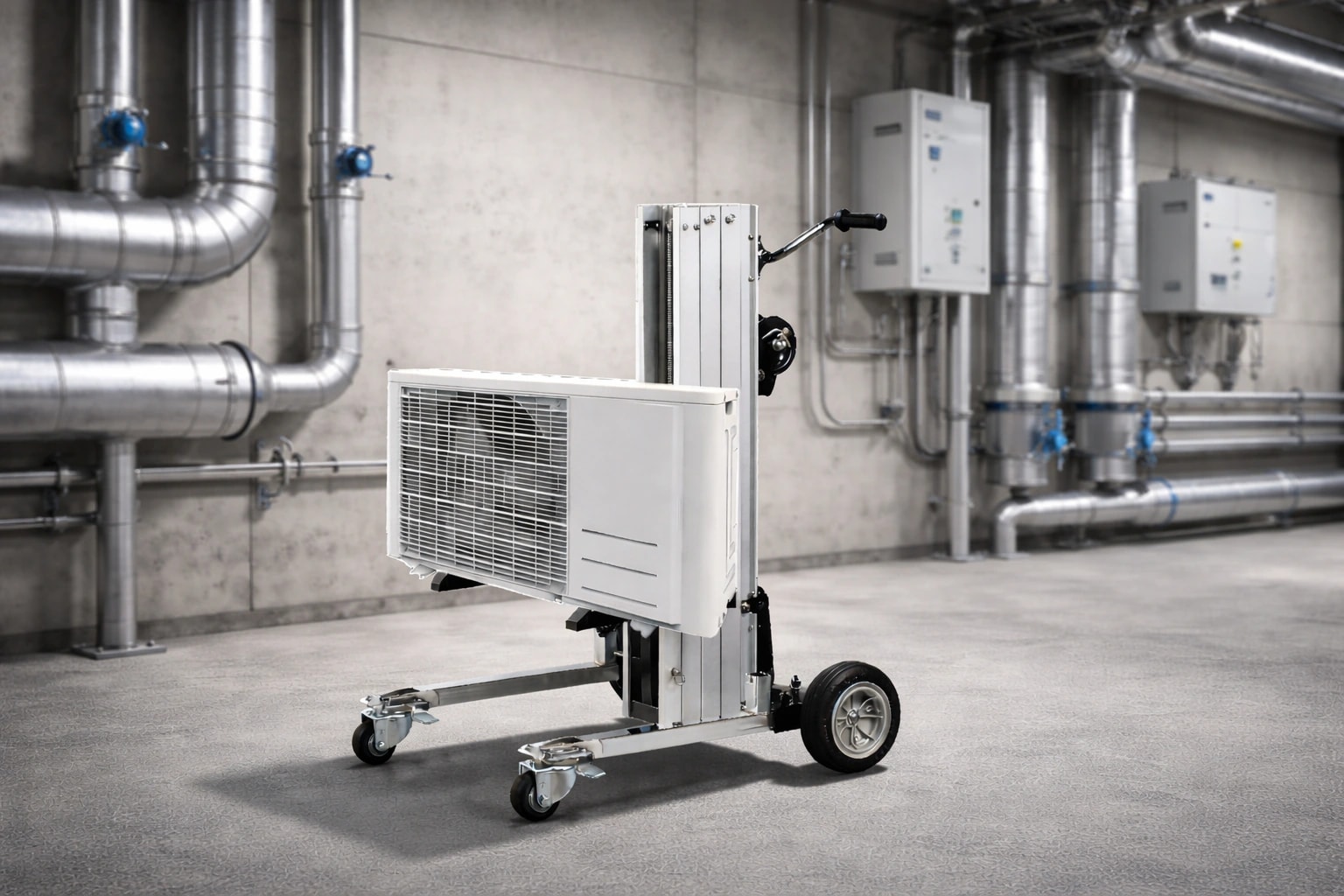

01HVAC handling
Manual, power-free positioning for air-conditioning equipment and technical services.

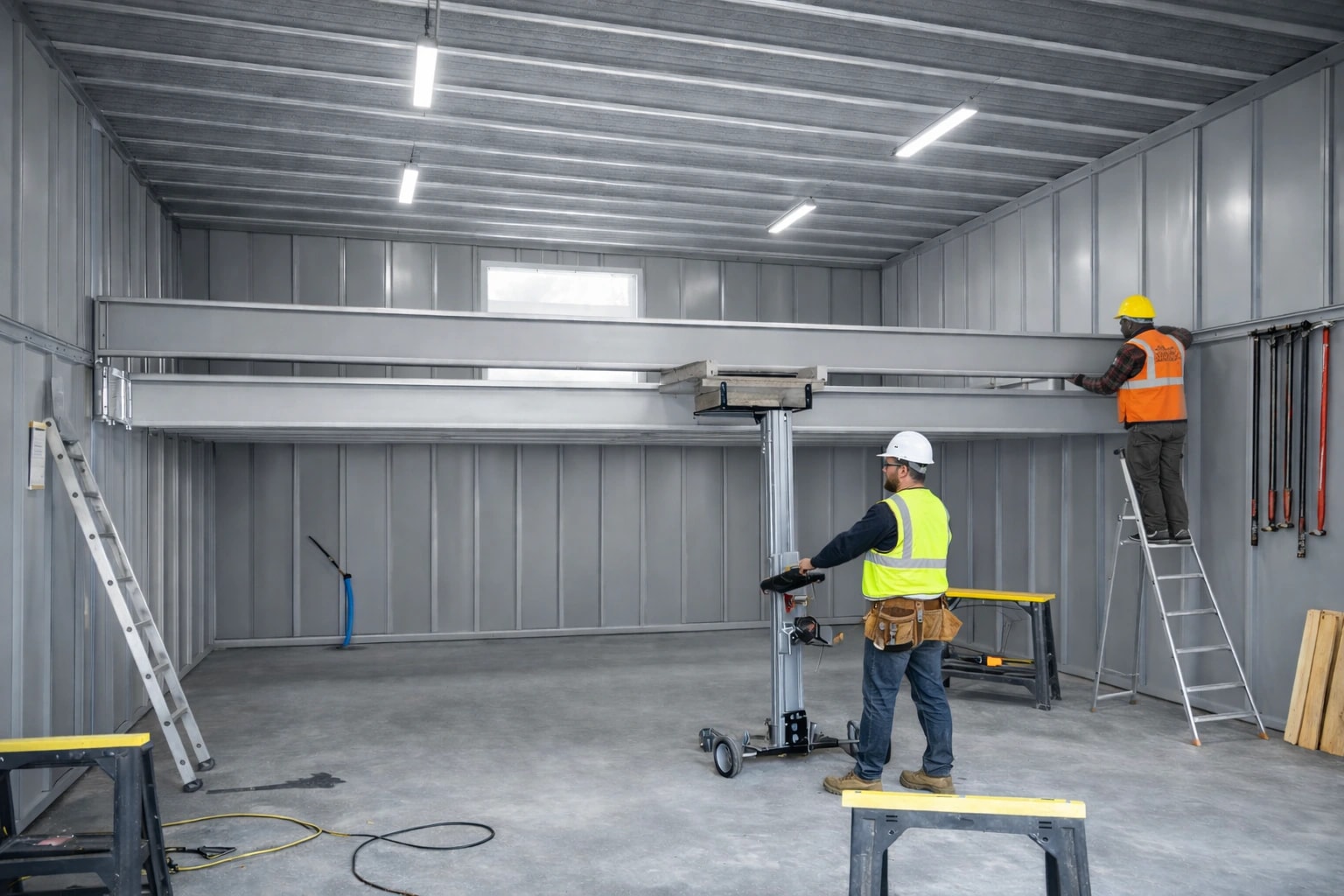

02Workshop and site installation
Stable handling for beams, pipes and structural elements.

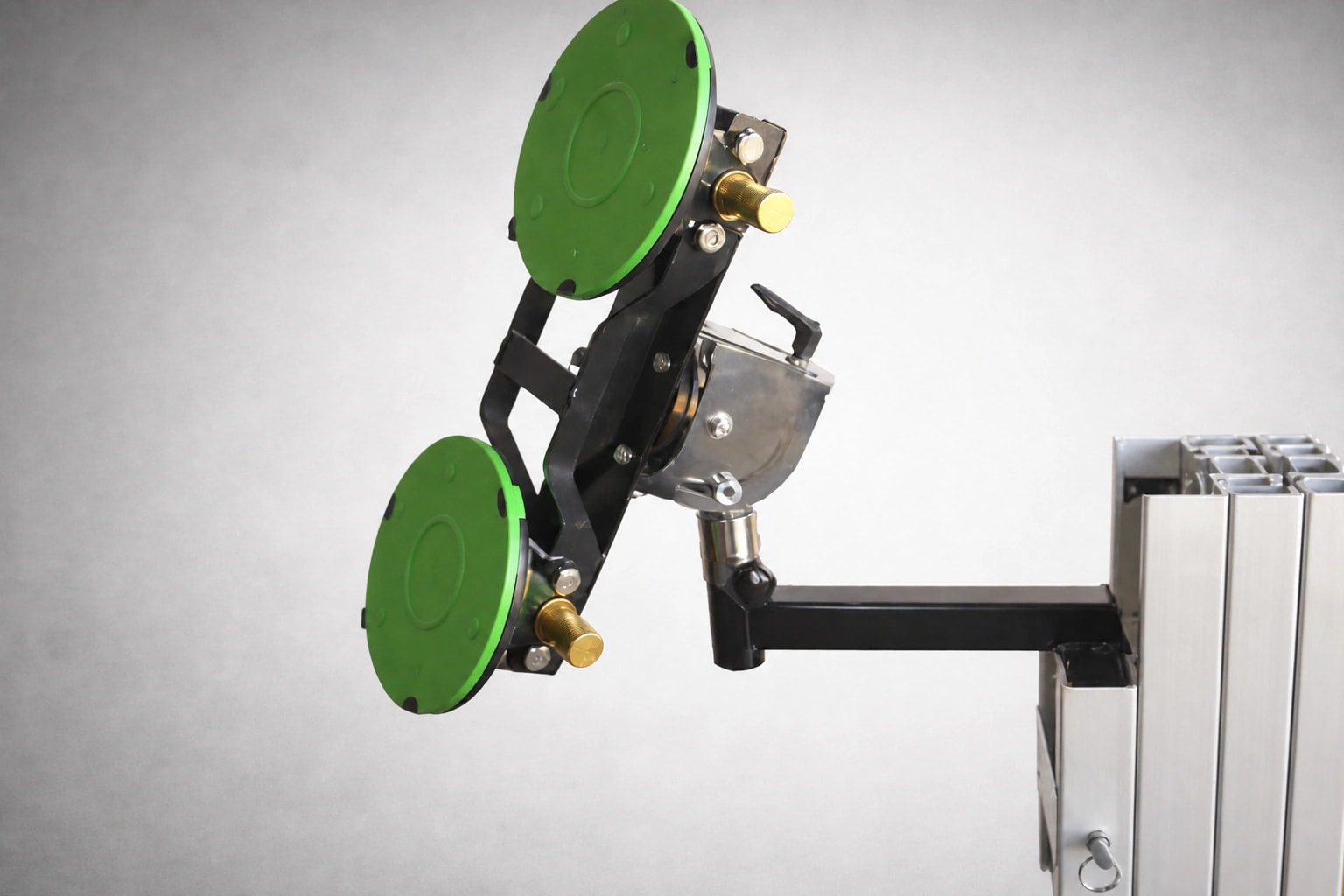

03Attachment-led work
A modular platform that adapts to glazing, supported loads and specialist installation tasks.
Typical applications
Beam and structural element positioning
Shutters and blinds installation
HVAC and air-conditioning equipment handling

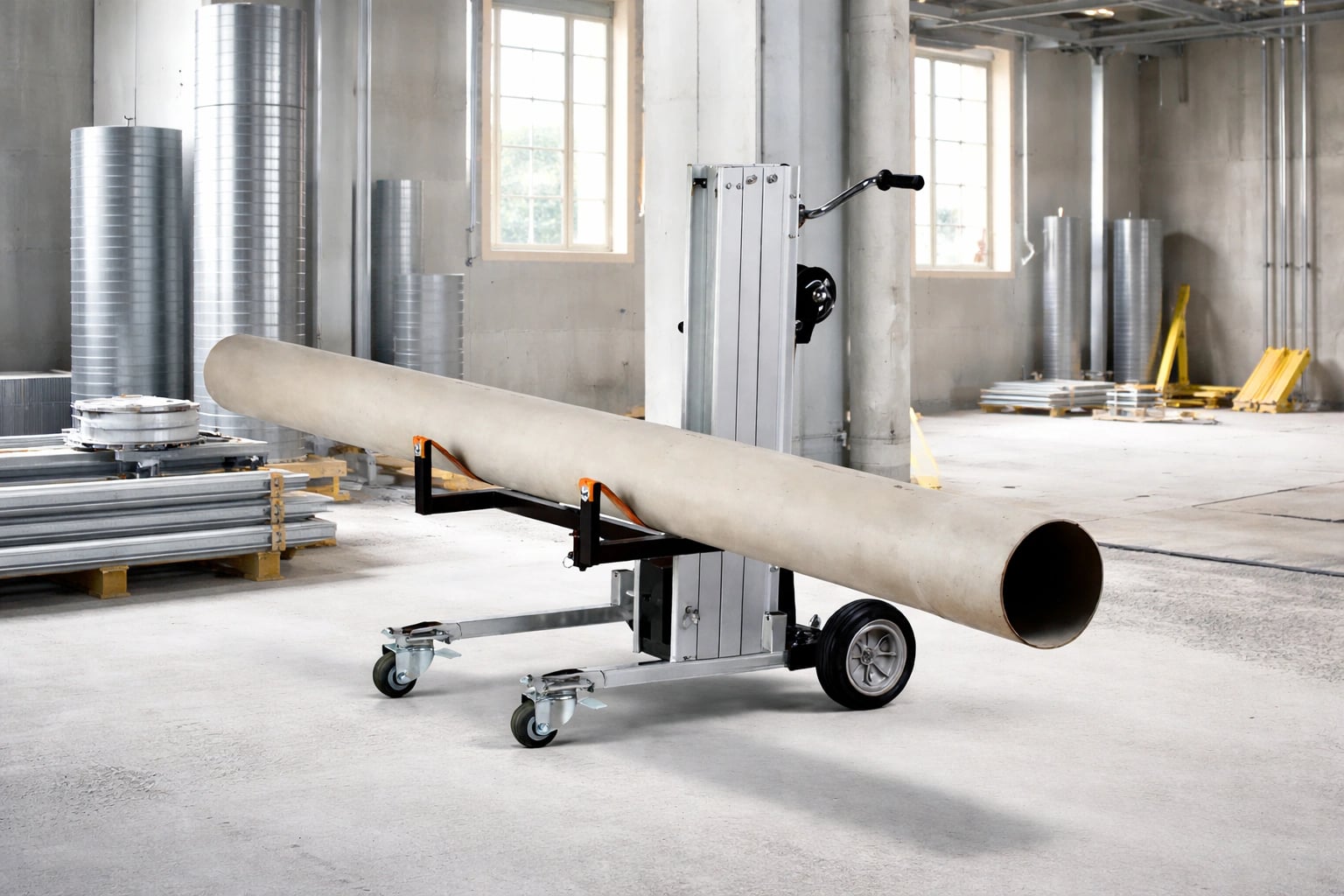

Pipe lifting and positioning
Workshop handling and internal material movement
General installation and maintenance work
04 Technical data
Technical facts
for the job.
Product data for professional evaluation. Request the available documentation for model-specific guidance.
- Model
- BD1
- Type
- Manual material lift
- Maximum lifting height
- 3.03 m
- Maximum capacity
- 180 kg
- Machine weight
- 60 kg
- Operation
- Manual
- Overall dimensions
- 92 × 78 × 117 cm
- Rear wheels
- 250 mm
- Front swivel castors
- 76 mm
- Power requirement
- None
Recommended applications
Beam and structural element positioning
Shutters and blinds installation
HVAC and air-conditioning equipment handling
Pipe lifting and positioning
Workshop handling and internal material movement
General installation and maintenance work
05 Compatible equipment
Configure it
for the task.
Choose equipment according to the material, access route and working conditions. Final compatibility must be confirmed in the current product documentation.

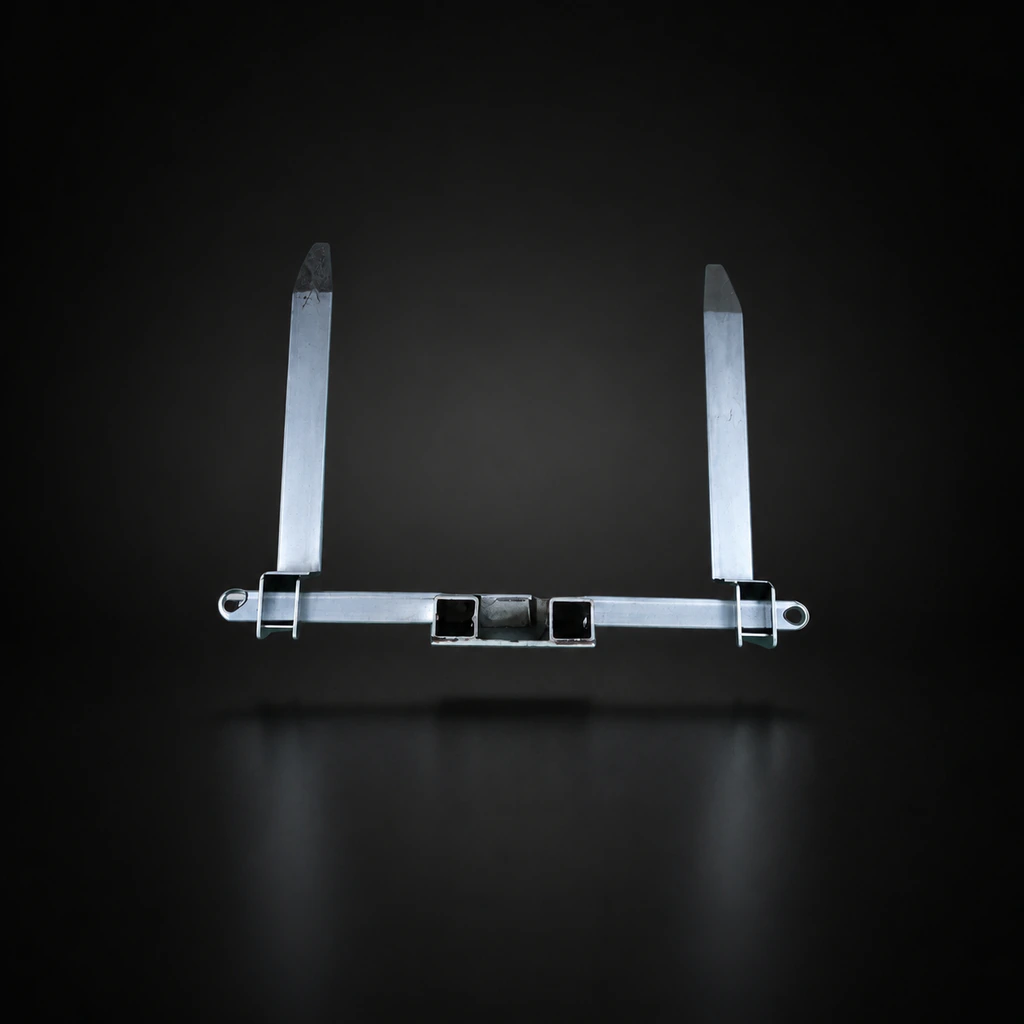

01Fork set with support bracket
Maximum load 180 kg
02Strap-supported cradle
Maximum load 180 kg

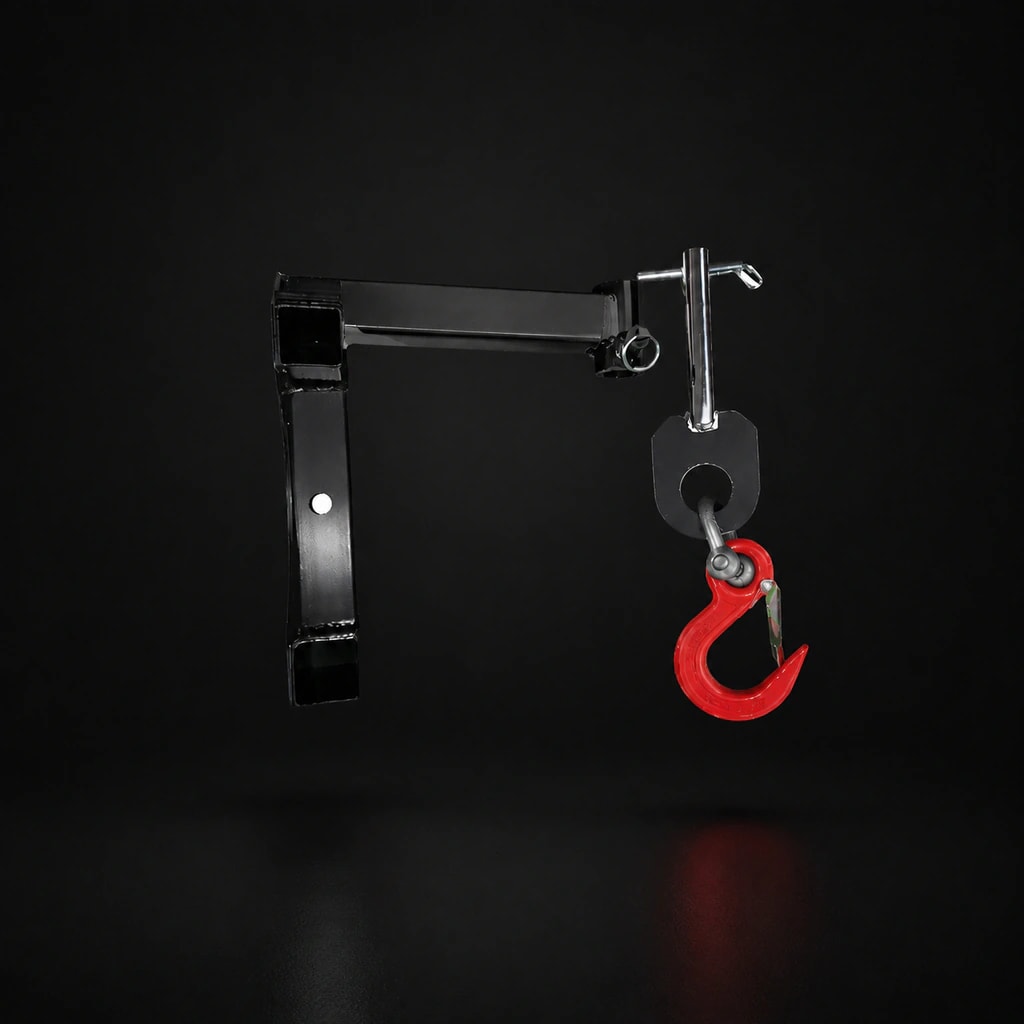

03Jib arm with hook
Maximum load 180 kg

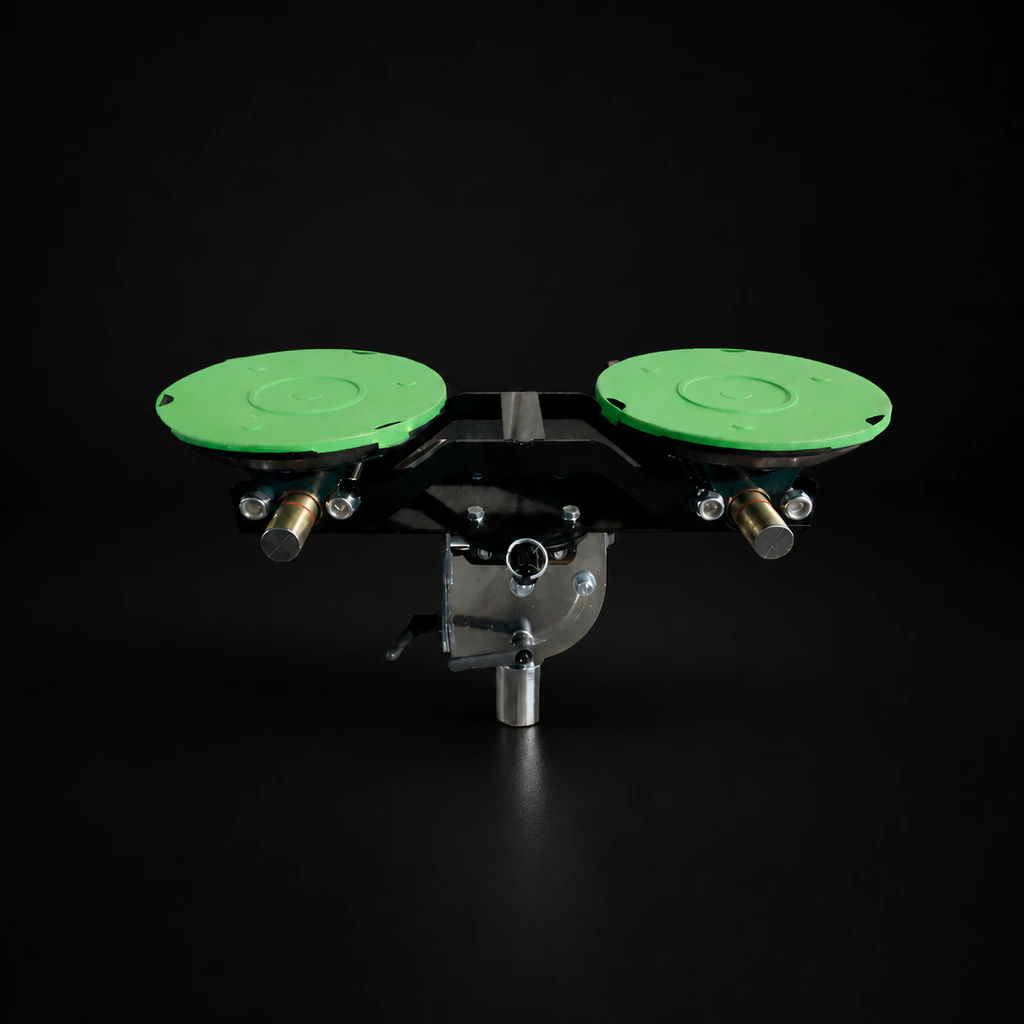

042-pad glass cradle G-LS
Maximum load 130 kg

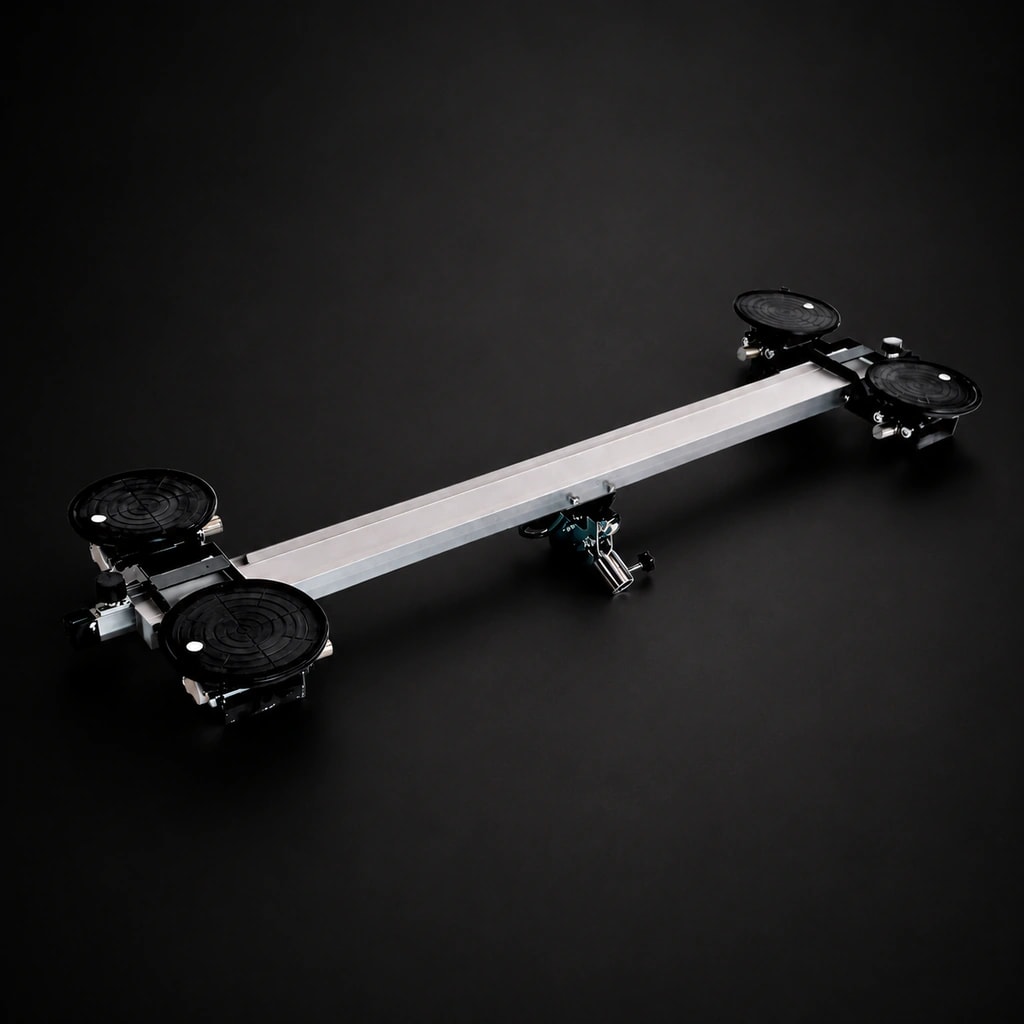

054-pad glass cradle CA 500
Maximum load 180 kg

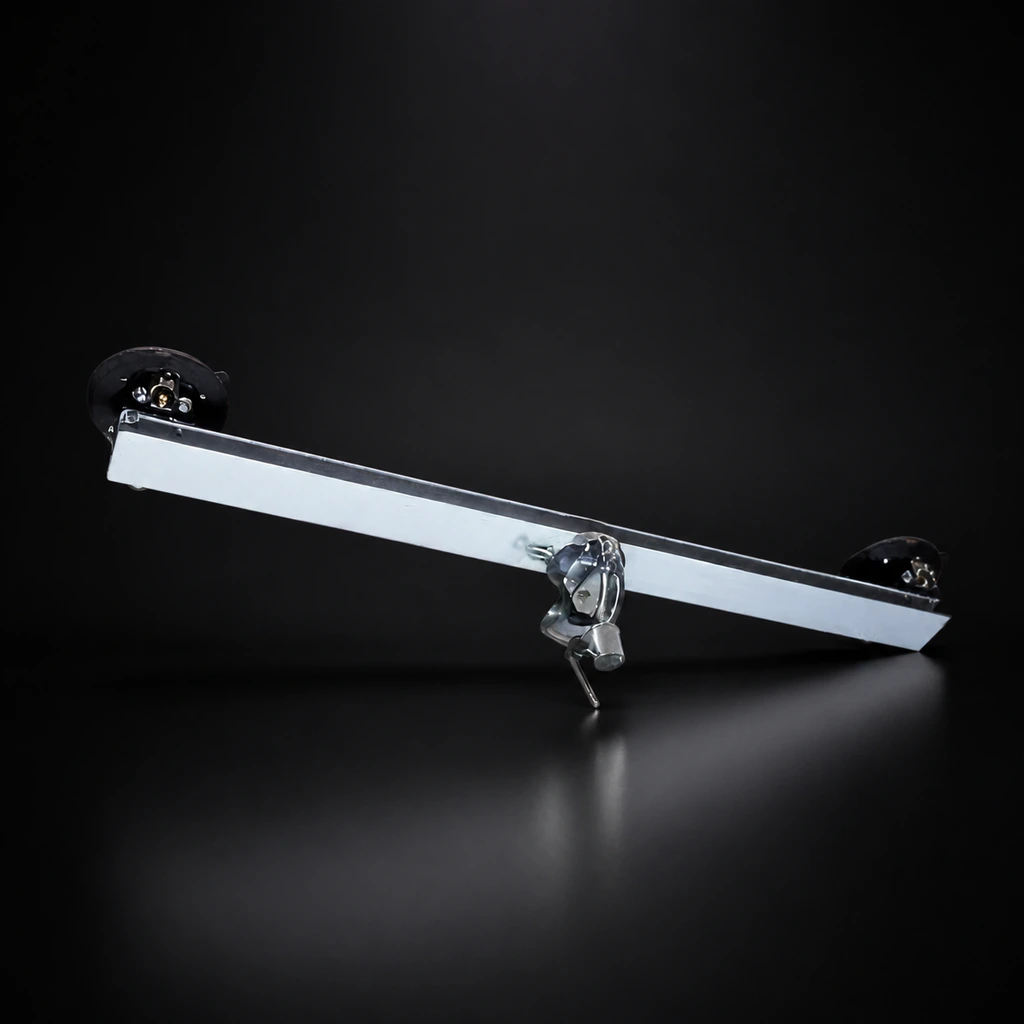

062-pad glass cradle G-CM
Maximum load 120 kg
