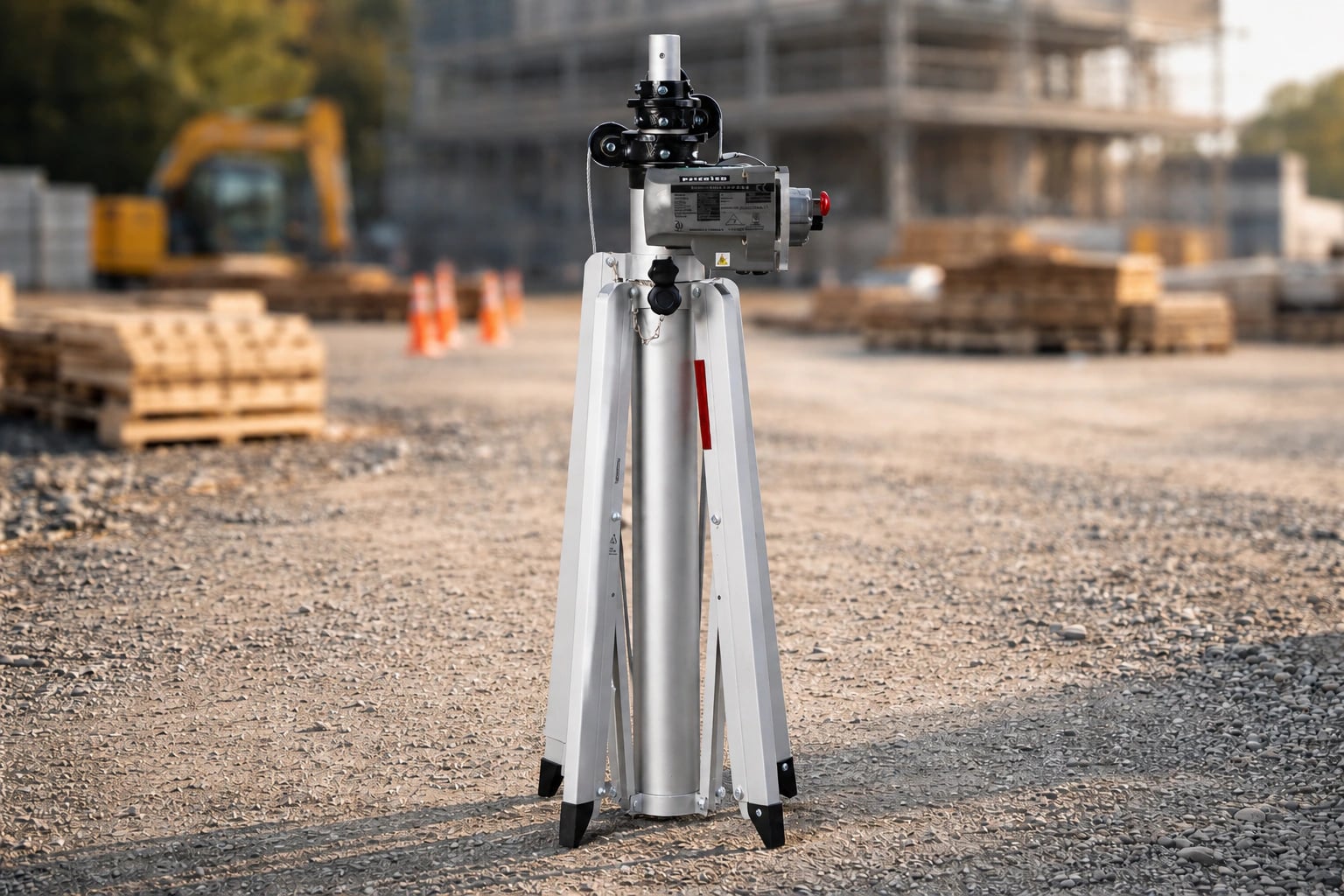

01Compact and easy to carry
The CM 340 is built around a lightweight aluminium mast and a simple two-part design, making transport and setup much easier from one job to the next. Two bags for site handling are included.
All systems
Electric / CM Series
CM 340
The CM 340 is a compact lifting solution engineered for installers who value mobility, control and efficient setup on site.
Compact / entry
Maximum lifting height3.3 m
Maximum capacity120 kg
Machine weight21 kg
Operation230 V
01 Built for controlled work
Why choose
CM 340.
Compact, mobile exterior installation work. The design stays focused on practical setup, accurate positioning and professional installation work.
01
02Fast setup without tools
The unit is intended for immediate use on site and can be put into working position in seconds without tools, helping teams save time during installation.

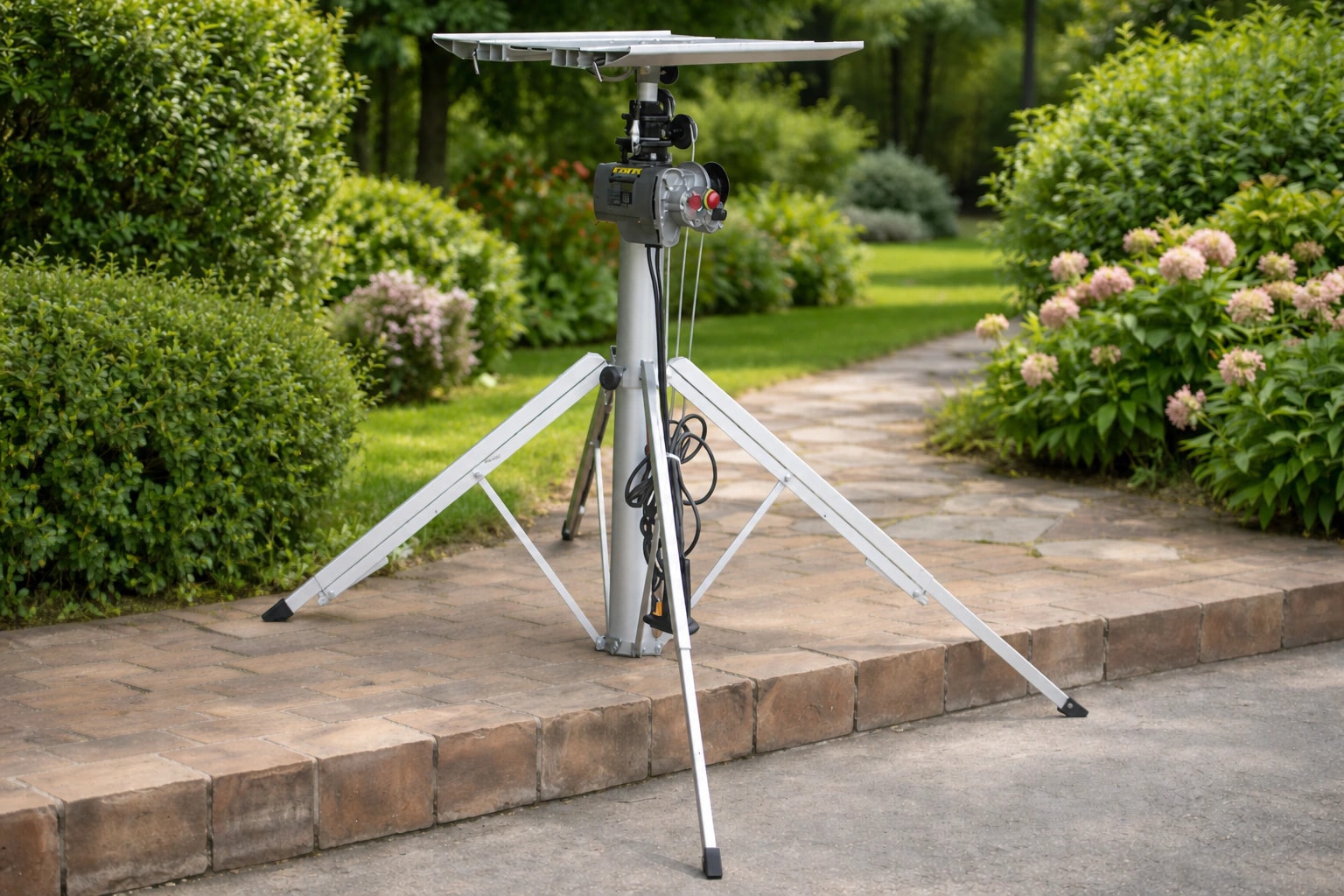

03Better adaptability on site
Its telescopic and adjustable legs allow the CM 340 to work on stairs, sloped ground and uneven surfaces, provided the machine is kept level during setup.
04Variable-speed electric lifting
The lift uses an electric winch with variable-speed control for smoother starts and more precise lifting and lowering.

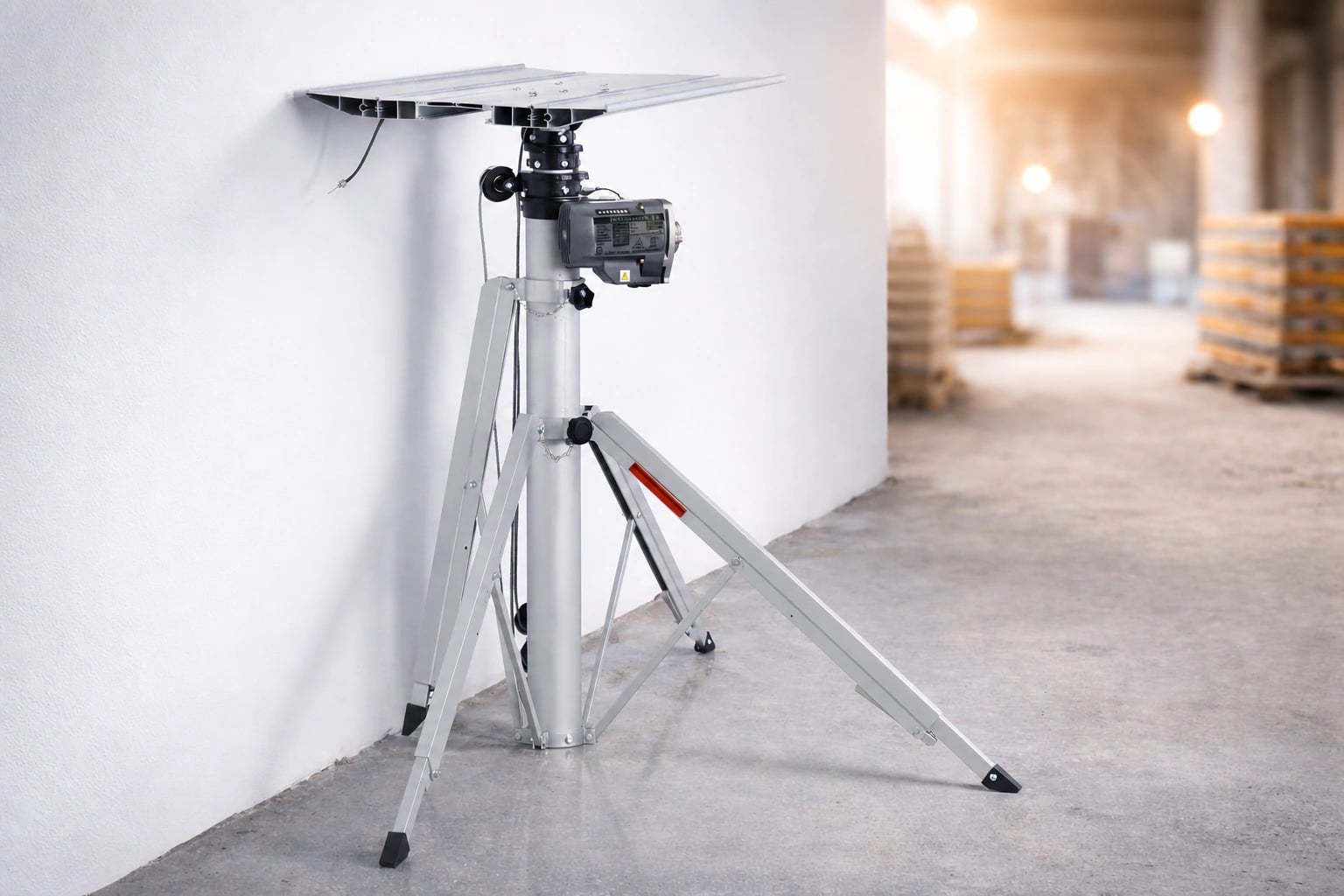

05Practical close-to-wall working
A dedicated leg adjustment concept allows near-wall operation, which can be especially useful when working close to façades or structural elements.
06Manual backup operation
The CM 340 can still be operated manually using the supplied handle if electrical power is unavailable.
07Built-in overload and emergency stop protection
Overload protection and an emergency stop system allow the operator to interrupt lifting or lowering immediately.
08Integrated spirit level
A level indicator helps the operator confirm proper setup before lifting.
09Rotating platform
The platform rotates 360° and can be locked in multiple positions, giving installers more flexibility when positioning materials.
02 Product gallery
See CM 340 in real use.
Product views first, then product details and application views. Shared range components are labelled as such.
12 product and application views

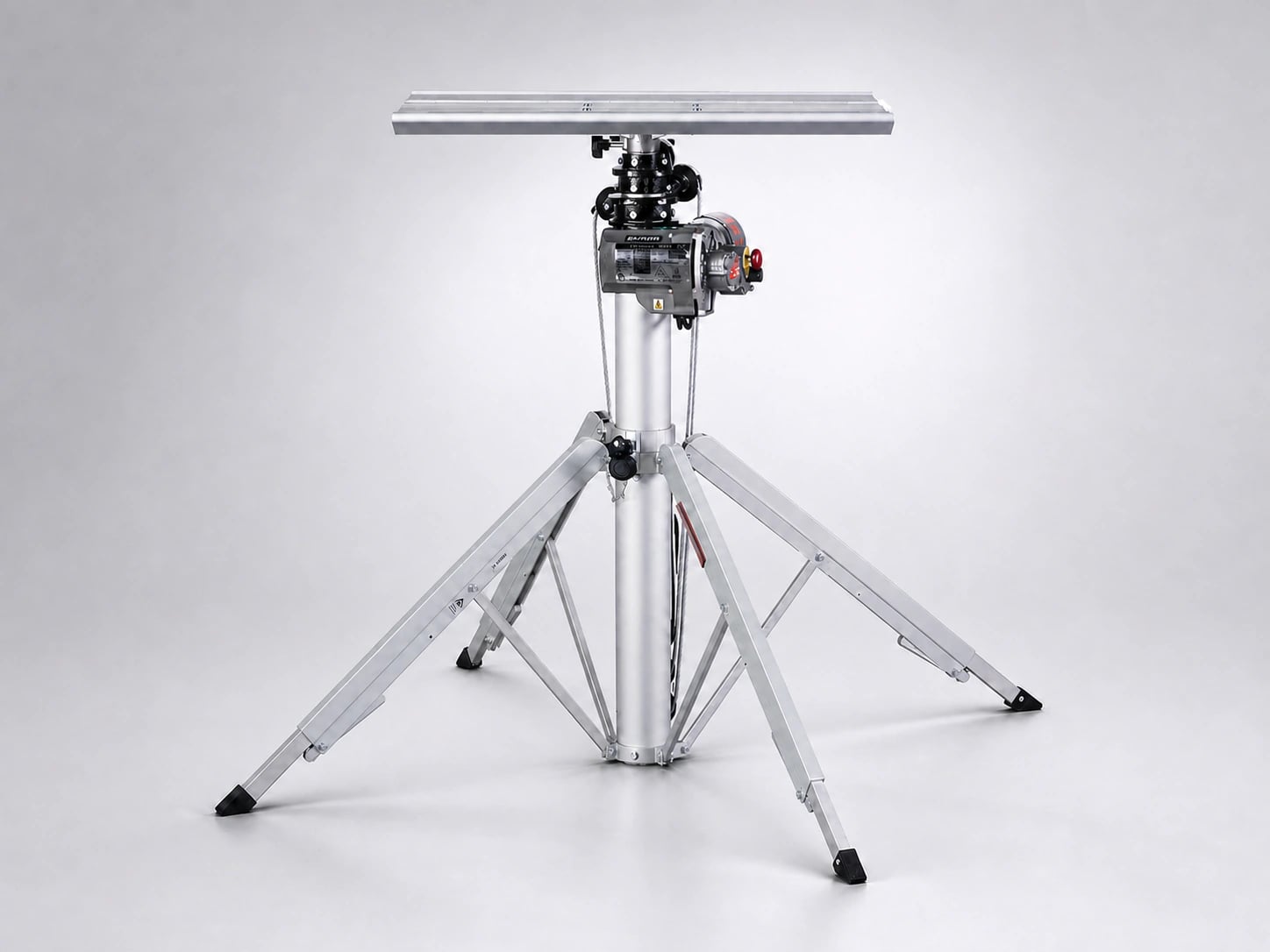

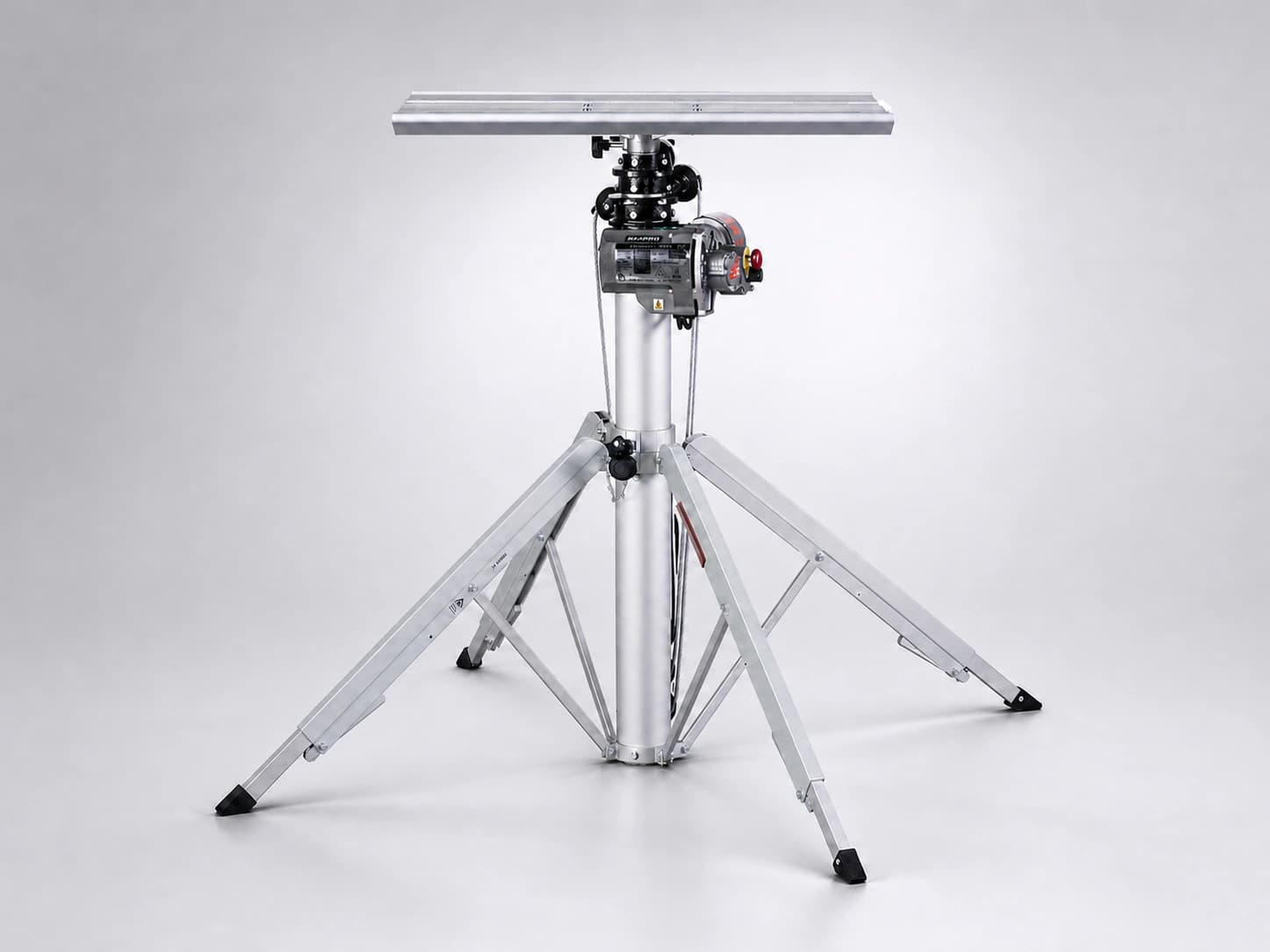

Product viewCM 340 hero view
CM 340 presented in its complete working configuration.
Choose a view
03 Applications and industries
Built for real installation work.
Rather than being limited to one trade, the CM 340 supports a wide range of lifting and positioning tasks where compact size, controlled movement and quick deployment are important.

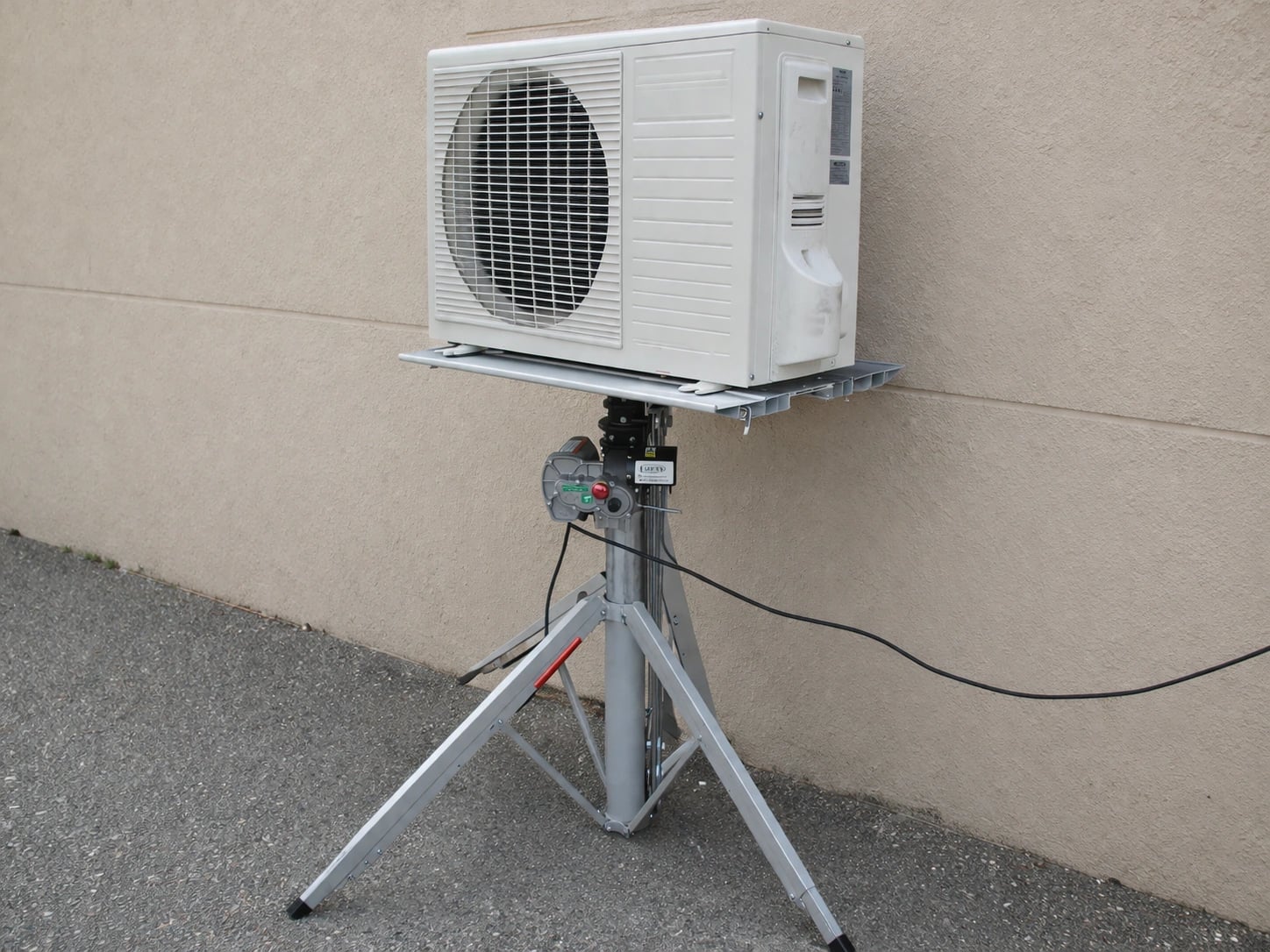

01HVAC and technical services
Compact electric lifting for controlled positioning of HVAC equipment and technical components.

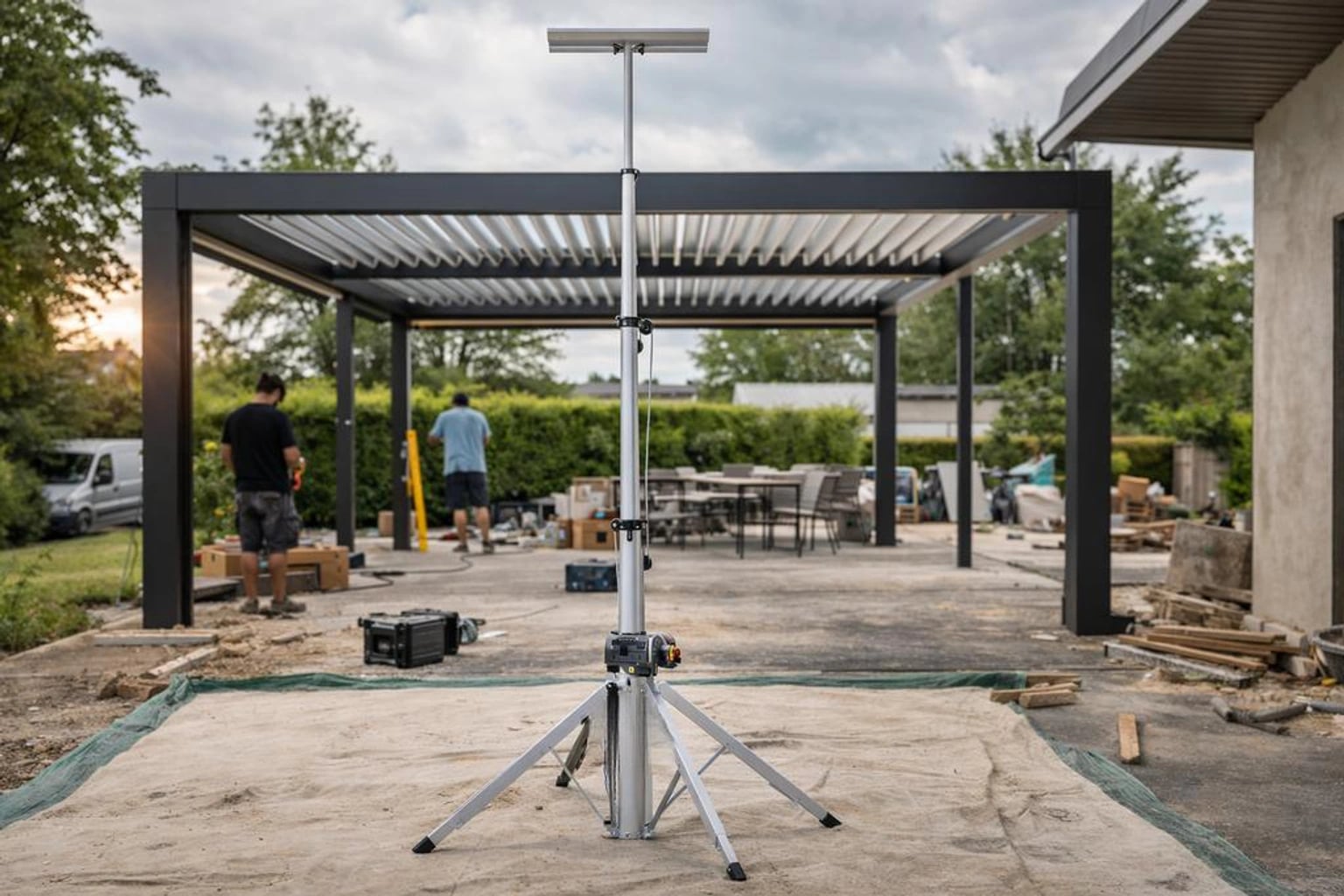

02Pergolas and exterior systems
Quick deployment for awnings, pergolas, carports and other exterior installation work.

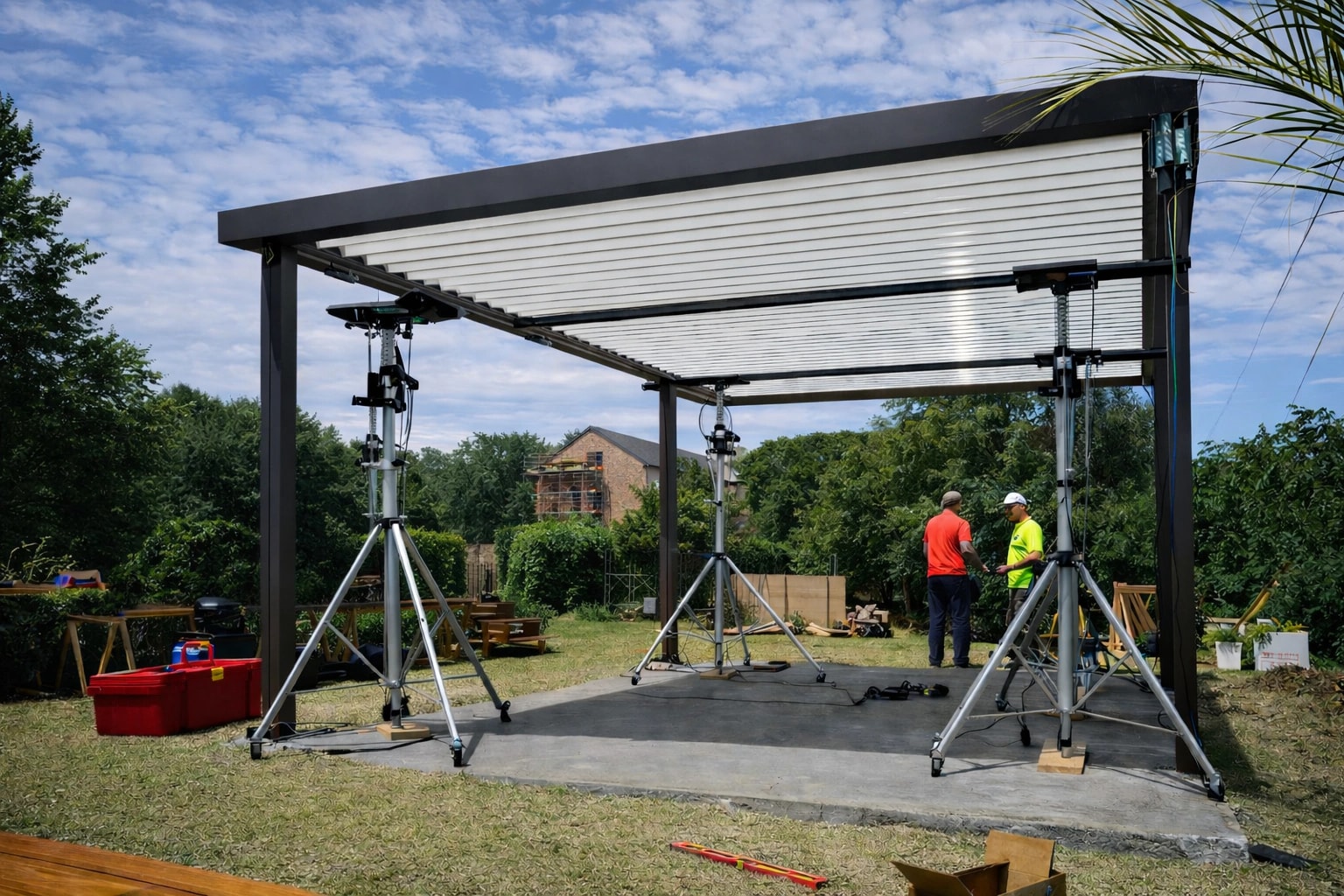

03General installation
A portable lifting platform for signage, doors, screens and routine technical maintenance.
Typical applications
Awnings and shading systems
Pergola installation
Garage door installation
HVAC components and light equipment handling
Ducting and technical building services
Screens, signage and indoor technical equipment
Carport installation
General installation and maintenance work
04 Technical data
Technical facts
for the job.
Product data for professional evaluation. Request the available documentation for model-specific guidance.
- Model
- CM 340
- Type
- Portable electric material lift
- Maximum lifting height
- 3.3 m
- Maximum capacity
- 120 kg
- Machine weight
- 21 kg
- Operation
- 230 V
- Base height
- 950 mm
- Capacity by lifting height
- 120 kg at 3.3 m
- Platform weight
- 5.3 kg
- Closed footprint
- 300 × 300 mm
- Open footprint
- 1.06 × 1.06 m
- Power supply
- 230 V / 4 A single-phase
Recommended applications
Awnings and shading systems
Pergola installation
Garage door installation
HVAC components and light equipment handling
Ducting and technical building services
Screens, signage and indoor technical equipment
Carport installation
General installation and maintenance work
05 Compatible equipment
Configure it
for the task.
Choose equipment according to the material, access route and working conditions. Final compatibility must be confirmed in the current product documentation.

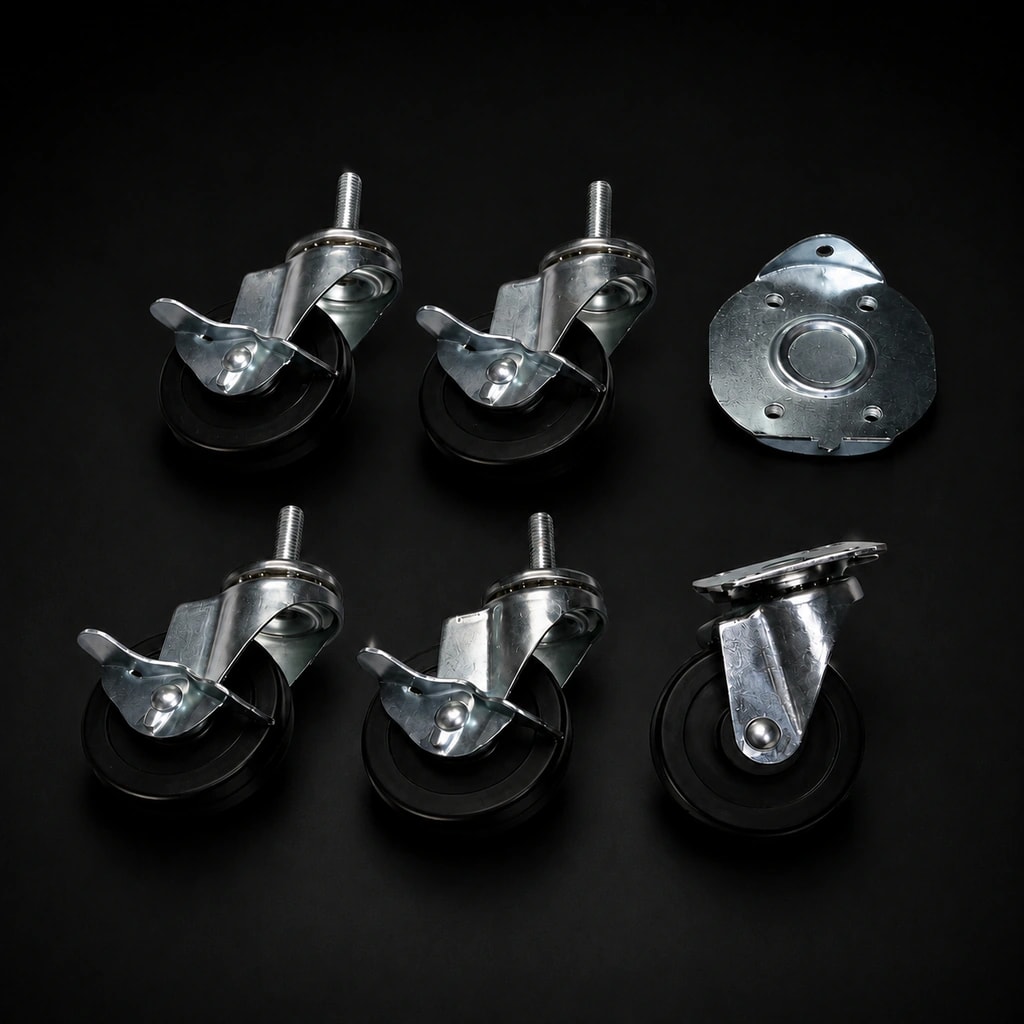

01Wheel kit
5 wheels
02Platform extensions
2 × 380 mm
03Motor protection cover
CM Series
042-pad glass cradle G-CM / G-LS
Maximum load 70 kg
